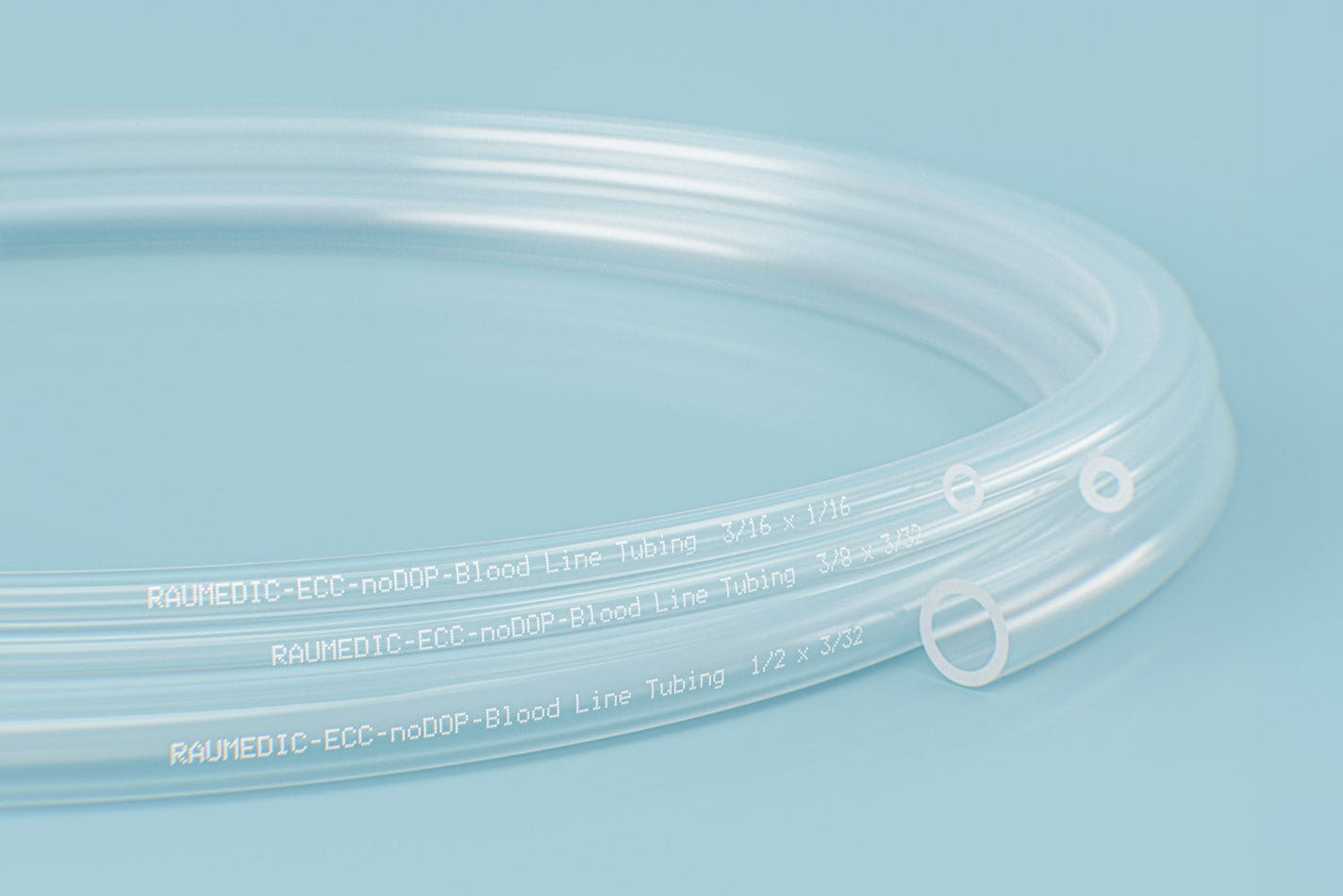

ECC Blood Line Tubing for Heart-Lung Machines

RAUMEDIC’s ECC noDOP® tubing supports safe, efficient, and long-term reliable blood transfer during extracorporeal circulation (ECC), especially in cardiovascular procedures involving heart-lung machines. The soft-PVC tubing is manufactured under ISO Class 7 cleanroom conditions and utilizes a tailored TEHTM plasticizer system; witout addition of  DEHP and DOA. The result: enhanced blood compatibility, minimized toxicological risk, and maximum ECC system safety.

Art-Nr.: 038177-010
Delivery: 2 Weeks
View full details

Blood-compatible PVC tubing for extracorporeal circulation

RAUMEDIC’s blood line tubing made from noDOP® soft-PVC builds on over six decades of experience in ECC applications, including the first heart operation performed in Germany. Today, state-of-the-art laminar flow technology and strict ISO Class 7 cleanroom processes ensure that each tubing meets the purity, safety, and performance requirements of modern cardiac and perfusion systems.

The noDOP® formulation features excellent haemocompatibility and significantly reduced plasticizer migration compared to traditional PVC. While preserving all the mechanical flexibility needed in ECC circuits, it supports stable blood-contact conditions – making it ideal for OEM system integration or customized ECC set configurations.

Superior blood compatibility

Formulated with TEHTM plasticizer, noDOP® significantly reduces platelet activation and plasticizer migration, supporting physiological conditions during ECC use.

Low toxicity profile

In HeLA cell tests, the noDOP® system proved up to 100× less toxic than DEHP, helping minimize biological risks in critical applications.

Sterilization-ready

Suitable for gamma sterilization (up to 50 kGy) or gas sterilization (ETO) for safe integration into ECC sets.

Product characteristics

  • High blood compatibility due to TEHTM plasticizer system
  • Low plasticizer migration and reduced platelet activation
  • Biocompatible and physiologically inert formulation
  • Phthalate-free PVC compound without DEHP and DOA additives
  • Transparent, flexible, and odorless
  • Produced in ISO 14644-1 Class 7 cleanroom
  • Suitable for gamma or gas sterilization
  • Designed for single-use ECC applications

FAQ

Material
RAUMEDIC ECC noDOP® Soft-PVC
Plasticizer: TEHTM (non-DEHP, non-DOA), Phthalat free
Formulation: Flexible, transparent, and physiologically inert
Biocompatibility
ISO 10993 compliant
USP Class VI tested
ISO 10993-4 (Hemolysis) tested
ISO 10993-5 (Cytoxicity) tested
Chemical Resistance
Resistant to saline, diluted acids/alkalis, alcohols, aldehydes, oils, and lipid emulsions
Not compatible with halogenated hydrocarbons or ketones
Sterilization
Gamma irradiation (up to 50 kGy)
Gas (ETO)
*Sterilization method must be validated by the user for the final application
Printing
Standardized printing
Custom printing on request

Article No.
Dimension ID x OD
Tolerances ID [mm]
Tolerances WT [mm]
Coil Length [m]
038177-010
3/16" x 1/16"
(4.75 x 1.6 mm)
4.63 – 4.80
1.44 – 1.60
100
039505-010
1/4" x 1/16"
(6.35 x 1.6 mm)
6.19 – 6.41
1.44 – 1.60
100
039535-005
3/8" x 1/8"
(9.5 x 3.2 mm)
9.26 – 9.60
2.16 – 2.40
50
039545-005
1/2" x 3/32"
(12.7 x 2.4 mm)
12.38 – 12.83
2.16 – 2.40
50

Customisation possibilities for this product

Do you need a customized product? No problem, together we can find a suitable solution tailored to your needs. If you have any special requests, please use our custom product request form to contact us.


  • Special measurements
  • Fixed lengths for tubes and individual pre-cuts
  • GMP-Standards
  • Labeling and logo printing


Request customized solution
*Please note:
Special requests may affect the certification of your product. Customisations are not available for samples.
