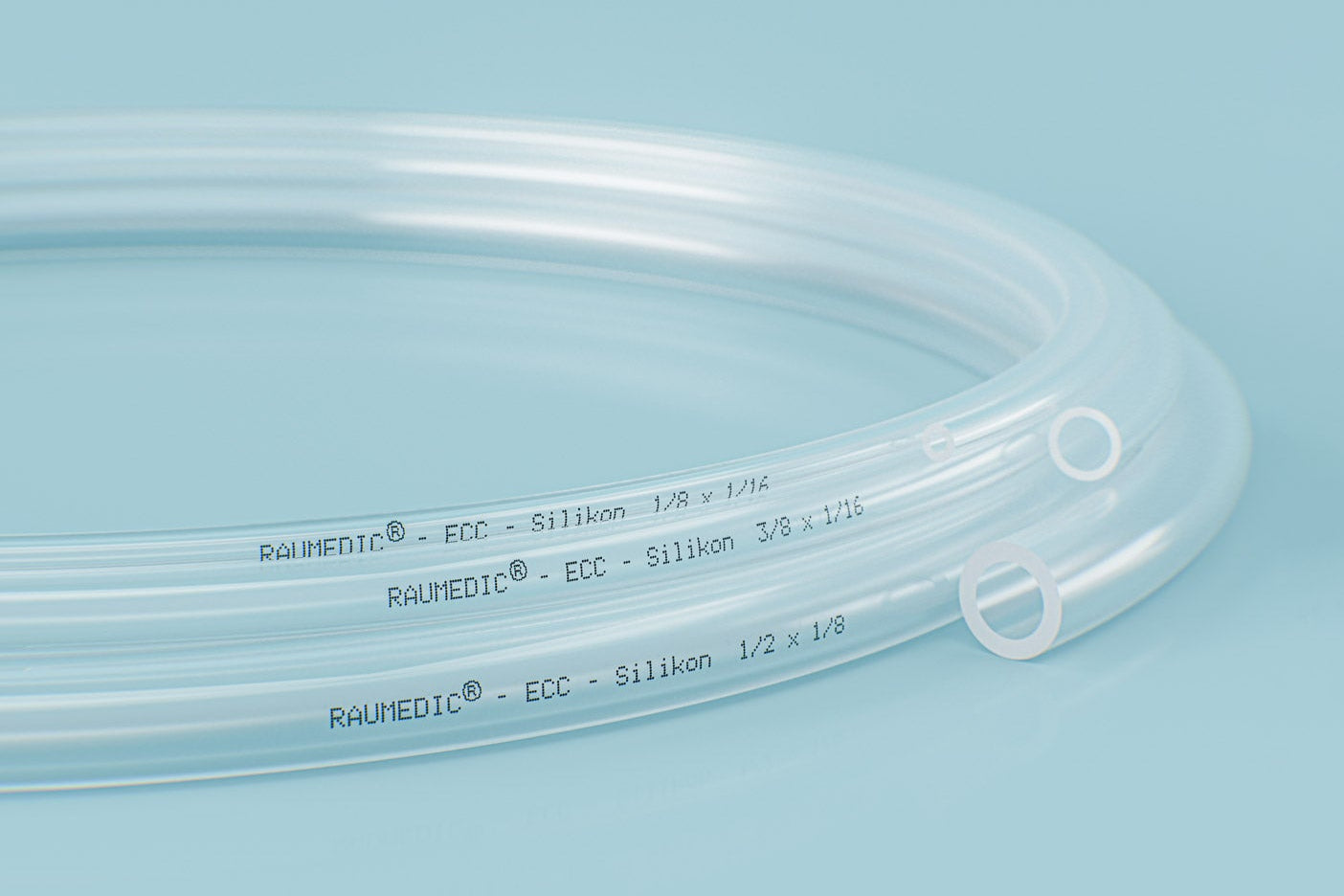

Silicone Pump Tubing for Extracorporeal Circulation (ECC)

Silicone Pump Tubing for Extracorporeal Circulation (ECC)

Reliable tubing for heart-lung machine applications

RAUMEDIC’s ECC silicone tubing is developed for use in extracorporeal circulation systems, offering the mechanical and physiological performance required during cardiopulmonary procedures. With excellent resilience, tear strength, and superior biocompatibility, this tubing meets the demanding requirements of ECC applications.

Art-Nr.: 819190-500
Delivery: 2 Weeks
View full details

Engineered for Critical Cardiovascular Use

RAUMEDIC ECC tubing has been used in heart surgery for over 60 years. Produced in ISO Class 7 cleanrooms and processed using laminar flow units, our silicone tubing meets the strictest hygienic and quality demands. Whether for blood transport or pump segments, our ECC tubing is designed to safely support life-critical functions.
The smooth inner surface encourages quick adsorption of blood proteins like albumin, promoting quasi-physiological conditions during ECC procedures. This improves the priming process and minimizes reactions during blood contact.

Superior durability in pump use

Extended service life far beyond a standard heart-lung operation

Priming-friendly inner surface

Rapid formation of quasi-physiological layer when in contact with blood

High biocompatibility

Uncritical in cytotoxicity and hemolysis testing

Product characteristics

  • High flexibility and elongation
  • Excellent tear strength
  • Specifically developed ECC silicone quality: SIK8363
  • Low Tack surface treatment for improved handling
  • Manufactured in ISO 14644 Class 7 cleanroom
  • Cytotoxicity tested according to ISO 10993-5
  • Transparent material
  • Suitable for single-use

FAQ

Material
RAUMEDIC ECC-SIK8363
Shore Hardness A: 60 ± 5
High resilience and long-term mechanical stability
Physical Properties
Density (g/cm³): 1.19
Stress at Break (MPa): ≥ 7
Strain at Break (%): ≥ 300
Tear Strength (N/mm): ≥ 20
Temperature Resistance
–60 °C to +180 °C
Biocompatibility
ISO 10993-4 (Hemolysis) tested
ISO 10993-5 (Cytotoxicity) tested
USP <88> Class VI tested
Standard Compliant
European Pharmacopoeia 3.1.9
FDA regulation 21 CFR §177.2600
Sterilization Method
Gas (EtO)
Steam (121 °C / 2 bar)
Gamma rays (Dose: max. 32 kGy)
*Sterilization method must be validated by the user for final application.
Printing
Standardized printing
Custom printing on request
Applications
• Heart-lung machine pump segments
• Blood transport lines
• Hypothermia circuits

Article No.
Dimension ID x WT
Tolerances ID [mm]
Tolerances WT [mm]
Coil Length [m]
819190-500
1/8" x 1/16"
(3.2 x 1.6 mm)
3.00 – 3.20
1.40 – 1.60
50
819200-503
3/16" x 1/16"
(4.75 x 1.6 mm)
4.55 – 4.75
1.40 – 1.60
50
819210-302
1/4" x 1/16"
(6.35 x 1.6 mm)
6.05 – 6.35
1.40 – 1.60
50
819050-301
1/4" x 3/32"
(6.35 x 2.4 mm)
6.05 – 6.35
2.10 – 2.40
25
819160-300
3/8" x 1/16"
(9.5 x 1.6 mm)
9.10 – 9.50
1.40 – 1.60
25
819060-301
3/8" x 3/32"
(9.5 x 2.4 mm)
9.10 – 9.50
2.10 – 2.40
25
819070-300
3/8" x 1/8"
(9.5 x 3.2 mm)
9.10 – 9.50
2.90 – 3.20
25
819080-301
1/2" x 3/32"
(12.7 x 2.4 mm)
12.20 – 12.70
2.10 – 2.40
25
819090-300
1/2" x 1/8"
(12.7 x 3.2 mm)
12.20 – 12.70
2.90 – 3.20
25
819110-300
5/8" x 1/8"
(15.9 x 3.2 mm)
15.40 – 15.90
2.90 – 3.20
25

Customisation possibilities for this product

Do you need a customized product? No problem, together we can find a suitable solution tailored to your needs. If you have any special requests, please use our custom product request form to contact us.


  • Special measurements
  • Fixed lengths for tubes and individual pre-cuts
  • GMP-Standards
  • Labeling and logo printing


Request customized solution
*Please note:
Special requests may affect the certification of your product. Customisations are not available for samples.
