RAULAB® for near-medical Applications

RAULAB® for near-medical Applications

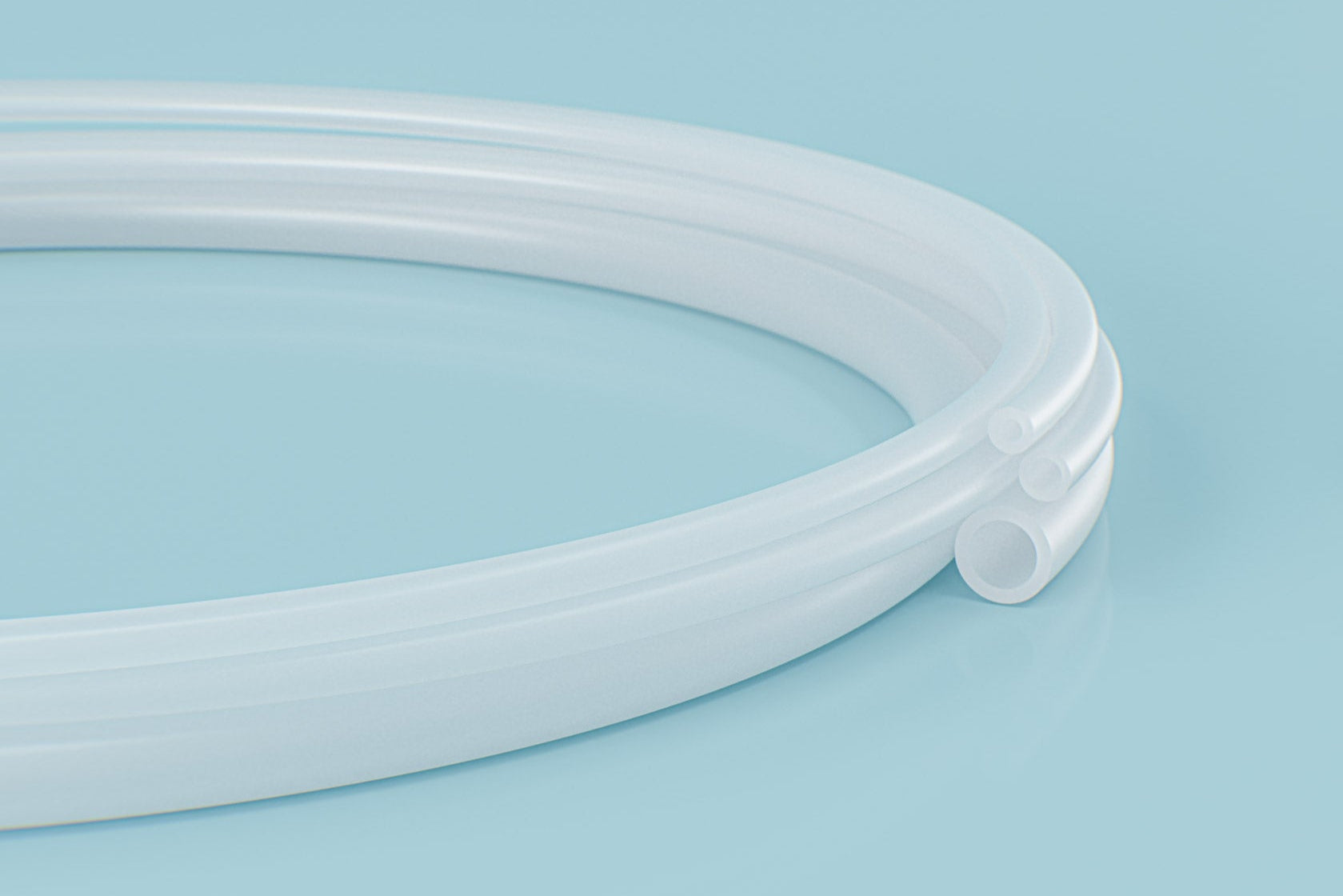

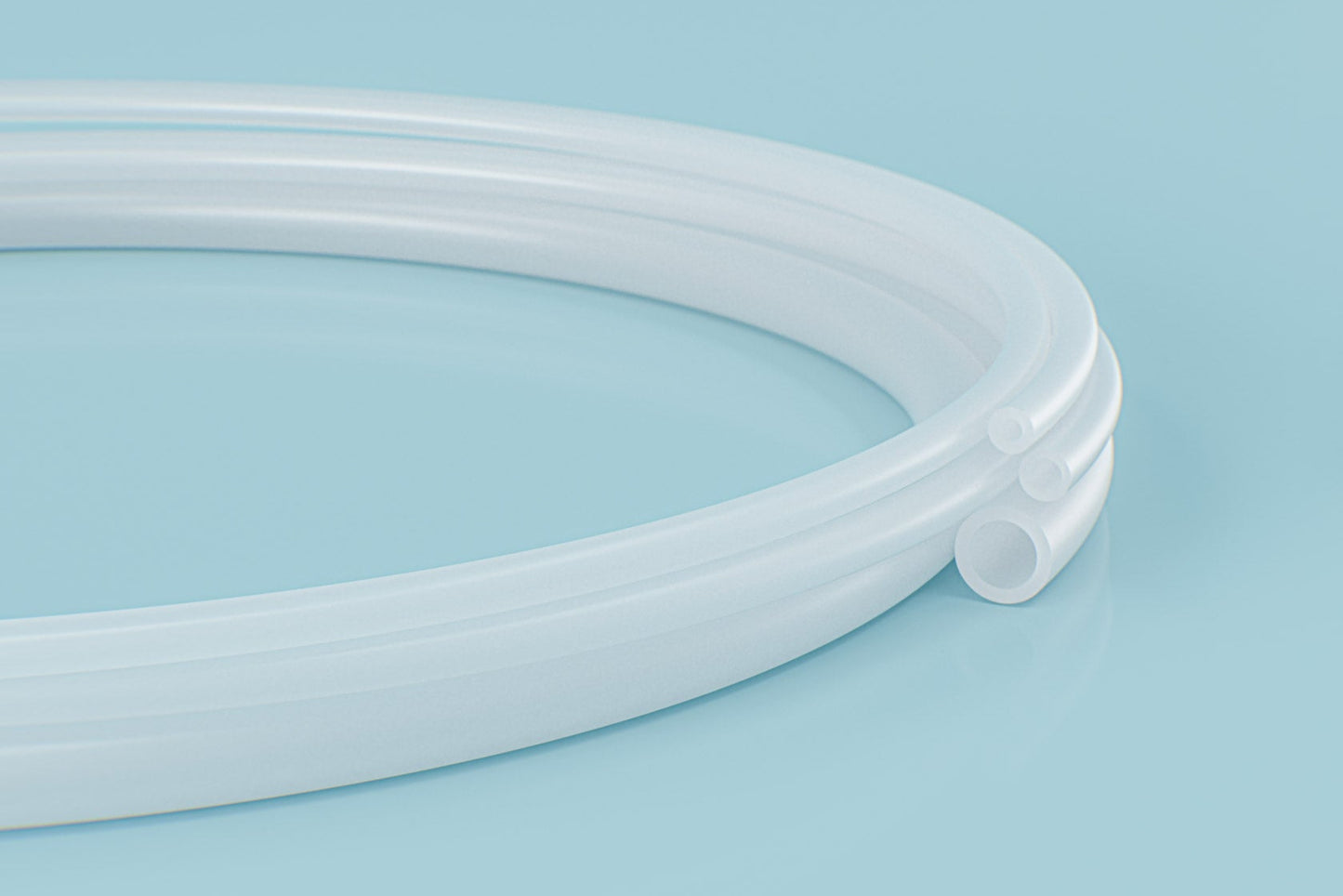

Platinum-Cured Silicone Tubing

RAULAB® is a high-quality silicone tubing designed for safe, hygienic, and compliant use in laboratory environments and near-medical applications.

Art-Nr.: 813083-050
Delivery: 2 Weeks
View full details

Engineered for Laboratory and Near-Medical Use

Whether in analytical setups, pharmaceutical labs or technical environments – RAULAB® tubing ensures reliable performance, long service life, and optimal material stability.

✔ Chemically Inert & Neutral

Does not interact with many sensitive substances and hence does not influence analytical results.

✔ Durable and Flexible

High resilience and excellent resistance to aging, ozone, weathering, and UV light.

✔ Wide Temperature Range

Safe for applications from –60 °C to +180 °C.

Material & Technical Information

Material

  • Silicone Rubber / RAU-SIK 6602
  • Addition-crosslinked hot vulcanizate based on vinyl methyl dimethyl polysiloxane using silicic acid and platinum catalyst
  • Color: Transparent (RAU-SIK 6602, RAUMEDIC color code 20900)*

Temperature Range

  • –60 °C to +180 °C

Sterilization Compatibility

  • Gas (ETO), steam, gamma radiation
  • Delivered non-sterile. Suitability for sterilization must be confirmed by the customer, especially for repeated cycles.

Food-Contact Compliance

  • Compliant with the scope of BfR.XV und FDA Code of Regulation 21, Paragraph 177.2600

*A slight discoloration may occur between batches, which is normal and does not affect performance or shelf life.

FAQ

Material
Silicone Rubber / RAU-SIK 6602
Addition-crosslinked hot vulcanizate based on vinyl methyl dimethyl polysiloxane using silicic acid and platinum catalyst
Shore Hardness A
60 ± 5 (DIN ISO 48-4)
Tensile Strength
≥ 8.5 MPa (DIN 53504 SII)
Elongation at Break
≥ 500 % (DIN 53504 SII)

Article No.
Description
Inner Diameter [mm]
Wall Thickness [mm]
Coil Length [m]
813083-050
RAULAB FG 4/2
3.80 – 4.20
1.80 – 2.20
50
813067-050
RAULAB FG 6/1.5
5.70 – 6.30
1.30 – 1.70
50
813068-050
RAULAB FG 6/2
5.70 – 6.30
1.80 – 2.20
50
813073-050
RAULAB FG 6/3
5.70 – 6.30
2.70 – 3.30
50
813074-050
RAULAB FG 7/3
6.70 – 7.30
2.70 – 3.30
50
813075-050
RAULAB FG 8/2
7.70 – 8.30
1.80 – 2.20
50
813076-050
RAULAB FG 8/3
7.70 – 8.30
2.70 – 3.30
50
813079-050
RAULAB FG 10/3
9.60 – 10.40
2.70 – 3.30
50
813071-050
RAULAB FG 12/2.5
11.60 – 12.40
2.20 – 2.80
50

Customisation possibilities for this product

Do you need a customized product? No problem, together we can find a suitable solution tailored to your needs. If you have any special requests, please use our custom product request form to contact us.


  • Special measurements
  • Fixed lengths for tubes and individual pre-cuts
  • GMP-Standards
  • Labeling and logo printing


Request customized solution
*Please note:
Special requests may affect the certification of your product. Customisations are not available for samples.
