RAUGAS® Gas Supply Tubing

RAUGAS® Gas Supply Tubing

Medical tubing for anesthesia, ventilation, and emergency equipment

Optimized medical-grade PVC tubing with internal reinforcement for exceptional burst resistance and performance. Specifically developed for medical gas supply and compliant with DIN EN ISO 5359. Available in color-coded variants for different gas types.

Art-Nr.: 048242-800
Delivery: 2 Weeks
View full details

Medical gas tubing for secure performance

RAUGAS® tubing by RAUMEDIC ensures safe, pressure-resistant, and compliant gas delivery in critical care, anesthesia, and ventilation settings. Designed in accordance with DIN EN ISO 5359, it combines robust construction with premium PVC formulation and integrated thread reinforcement. The inner and outer layers are inseparably bonded to ensure dimensional stability, occlusion resistance, and safe handling even under mechanical stress.

Thanks to precise manufacturing and rigorous quality assurance, RAUGAS® tubing supports reliable gas transfer for oxygen (O₂), AIR, carbon dioxide (CO₂), nitrous oxide (N₂O), and vacuum systems – making it ideal for hospitals, clinics, and emergency care.

Maximum Pressure Resistance

Reinforced structure with tested burst pressure ≥ 56 bar at 23 °C

Standard-Compliant & Reliable

Developed and tested in accordance with DIN EN ISO 5359:2018

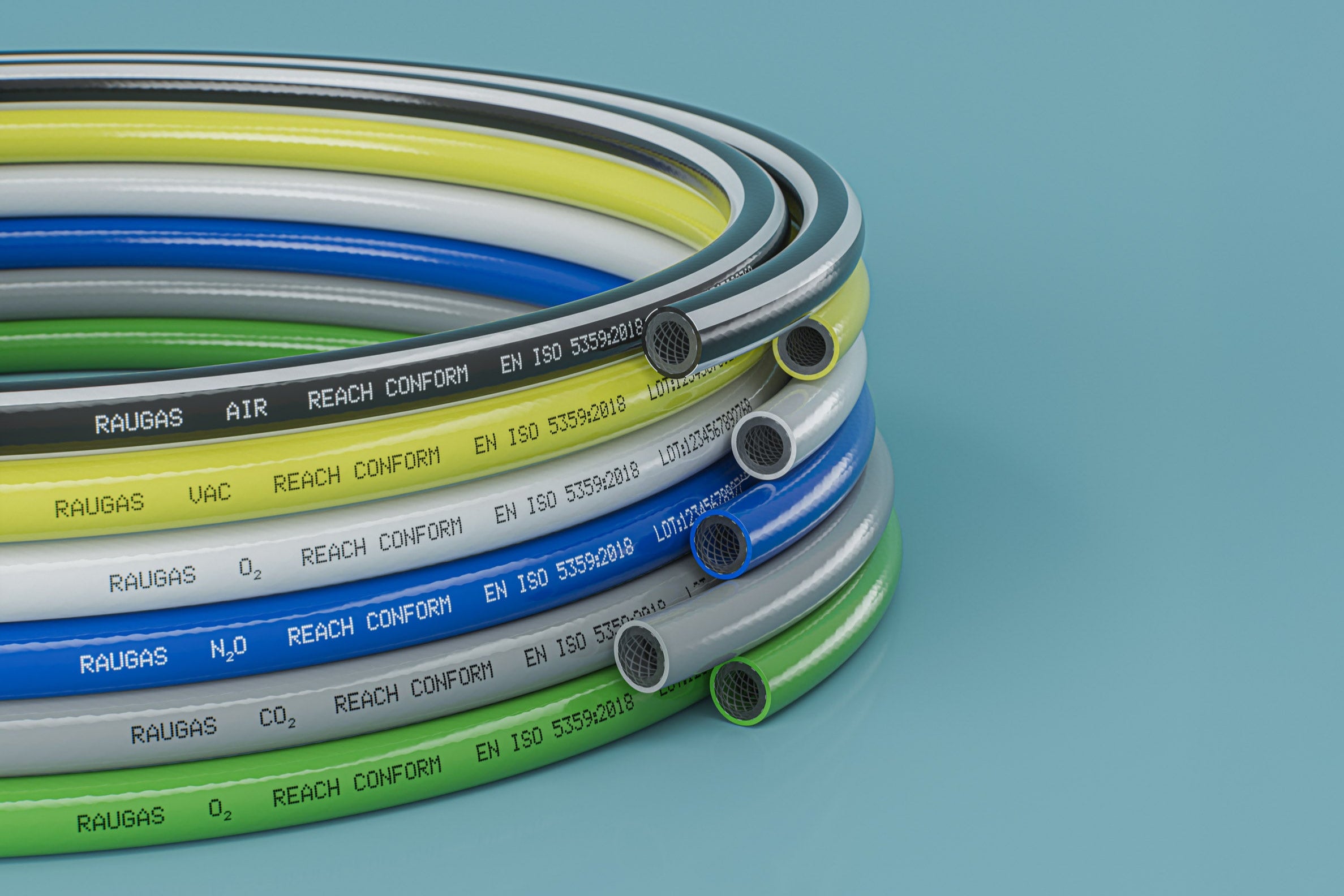

Color-coded for Safety

Available in standardized colors for oxygen, air, CO₂, vacuum, N₂O, and more

Product characteristics

  • Manufactured from flexible PVC MED8736
  • Integrated thread reinforcement between inner and outer layer

  • REACH compliant, BPA- and phthalate-free
  • Quality system certified according to ISO 13485
  • Printed with gas type and lot number (Inkjet)
  • Printable in white or black, depending on gas type
  • Supplied as rolls (100 m), PE-wrapped
  • Recommended sterilization: gas (ETO)
  • Not for direct use in the human body

FAQ

Material
Soft PVC MED8736 with plasticizer TEHTM
Shore Hardness A: 87 ± 5
Density: 1.22 g/cm³
Elongation at break: ≥ 235%
Tear strength: ≥ 13 MPa
Surface
High-gloss finish
Dimensions
Inner diameter (ID): 6.55 – 6.85 mm
Wall thickness: 2.80 – 3.20 mm
Printing
Inkjet printed with gas type and DIN EN ISO 5359:2018 reference
Lot number included
Sterilization Method
Gas (ETO)
Not intended for multiple sterilization cycles
Packaging
Supplied in 100 m coils
Packed in PE bag
Tolerance ±2%

Gas Type
Standard Color
Oxygen (O₂)
Pure White (RAL 9010)
Oxygen (O₂)
Yellow Green (RAL 6018)
Air
Jet Black & Pure White (RAL 9005 / RAL 9010)
Nitrous Oxide (N₂O)
Gentian Blue (RAL 5010)
Carbon Dioxide (CO₂)
Dusty Gray (RAL 7037)
Vacuum (VAC)
Zinc Yellow (RAL 1018)
Universal
Jet Black (RAL 9005)

Article No.
Description
Inner Diameter [mm]
Wall Thickness [mm]
Coil Length [m]
048242-800
RAUGAS 6,7/3,0 AIR bicolor
6,55-6,85
2,80-3,20
100
048252-800
RAUGAS 6,7/3,0 O2
6,55-6,85
2,80-3,20
100
048252-801
RAUGAS 6,7/3,0 N2O
6,55-6,85
2,80-3,20
100
048252-802
RAUGAS 6,7/3,0 VAC
6,55-6,85
2,80-3,20
100
048252-803
RAUGAS 6,7/3,0 CO2
6,55-6,85
2,80-3,20
100

Customisation possibilities for this product

Do you need a customized product? No problem, together we can find a suitable solution tailored to your needs. If you have any special requests, please use our custom product request form to contact us.


  • Custom coloring
  • Special measurements
  • Fixed lengths for tubes and individual pre-cuts
  • GMP-Standards
  • Labeling and logo printing


Request customized solution
*Please note:
Special requests may affect the certification of your product. Customisations are not available for samples.
